Solenoid Valves and Air Prep Parts Now Available

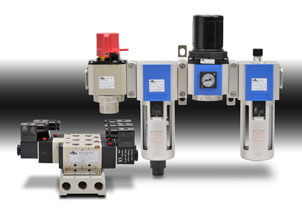

The NITRA™ line now includes several new series of products to help meet a broad range of pneumatic air supply pressure regulation and filtration applications. While each series is designed to work in stand-alone applications, the modular design enables field assembly for combining additional components.

The AF Series particulate and moisture separation air filters are available with 1/8 to 1-inch NPT female port sizes and either a semi-automatic or automatic drain. Polycarbonate bowls are standard on 1/8 through ½-inch sizes, with metal bowl guards provided on ¼ through ½-inch sizes. The ¾-inch and 1-inch sizes feature all-metal bowl construction with sight gauges.

NSolenoid ValvesITRA AR Series pneumatic air pressure regulators are available with adjustable pressure ranges of 20-130 psi or 7-60 psi. These regulators feature a locking pressure adjustment knob and integral pressure gauge.

The AFR Series combines particulate/moisture separation air filters and adjustable pressure regulators, all in a single convenient unit. Available in 1/8-inch through one-inch sizes, the pressure regulator features a locking pressure adjustment knob, integral pressure gauge with adjustable pressure range of 20 -115 psi.

AL Series mist-type air lubricators are available with 1/8-inch to one-inch NPT female port sizes and a lubrication rate adjustment with sight gauge. Polycarbonate bowls are standard on 1/8 through ½-inch sizes, while metal bowl guards are provided on ¼ through ½-inch sizes. The ¾-inch and one-inch sizes feature all-metal bowl construction with sight level gauges. Replaceable 40-micron filter elements are standard.

NITRA ARV pneumatic manual shut-off pressure relief valves are available with 1/8-inch to ½-inch female ports. The three-way, two-position design is used to shut off upstream pressure and relieve downstream pressure. The manually rotated knob can be locked out with the included padlock.

Three new series of directional control solenoid valves are also available. Solenoid coils for each series are available in either 24 VDC or 120 VAC control voltages. DIN-style wiring connectors feature LED indication of solenoid coil status.

AVP series three-way stackable poppet-style valves, starting at $16.75, can be used in individual valve applications or, to simplify piping connections, multiple valves can be field assembled to share supply air. AVP series valves include single-solenoid, two-position, spring return, normally-closed models.

AVS-3 series valves are body ported three-port (three-way) spool valves with port sizes up to 3/8-inch NPT and flow coefficients (Cv) from 0.78 to 1.67. AVS-3 series valves include:

  • Single-solenoid, two-position, spring return, normally-closed
  • Double-solenoid, two-position, energize open/energize closed

AVS-5 series body ported five-port (four-way) spool valves are available with port sizes up to 3/8-inch NPT and a flow coefficient (Cv) range of 0.67 to 1.68. For multiple-valve applications, AM-5 series manifolds are available in 2, 4, 6 or 8 stations. AVS-5 series valves include:

  • Single solenoid, spring return, normally-closed
  • Double-solenoid, two-position• Double-solenoid, three-position, center-closed or
    center-exhaust

See the complete NITRA line at: www.automationdirect.com/pneumatic-parts

Originally Posted: Sept 1, 2010
